Introduction
It is a kind of new 3D structural geosynthetics, which is applied in water and soil conservation.
Features
Preventing soil erosion, increasing the greening area and improving the ecological environment.
Function:
1.Before the greensward grows, it prevents the surface of the land from the erosion of the wind and rain.
2.Forming compound protection layer with the plant, standing the wash-out of the high water level and high speed current.
3.Replacing the concrete, asphalt, and block, using in the slope surface protection of roadway, railway, river-way, dyke, and the hillside, etc.

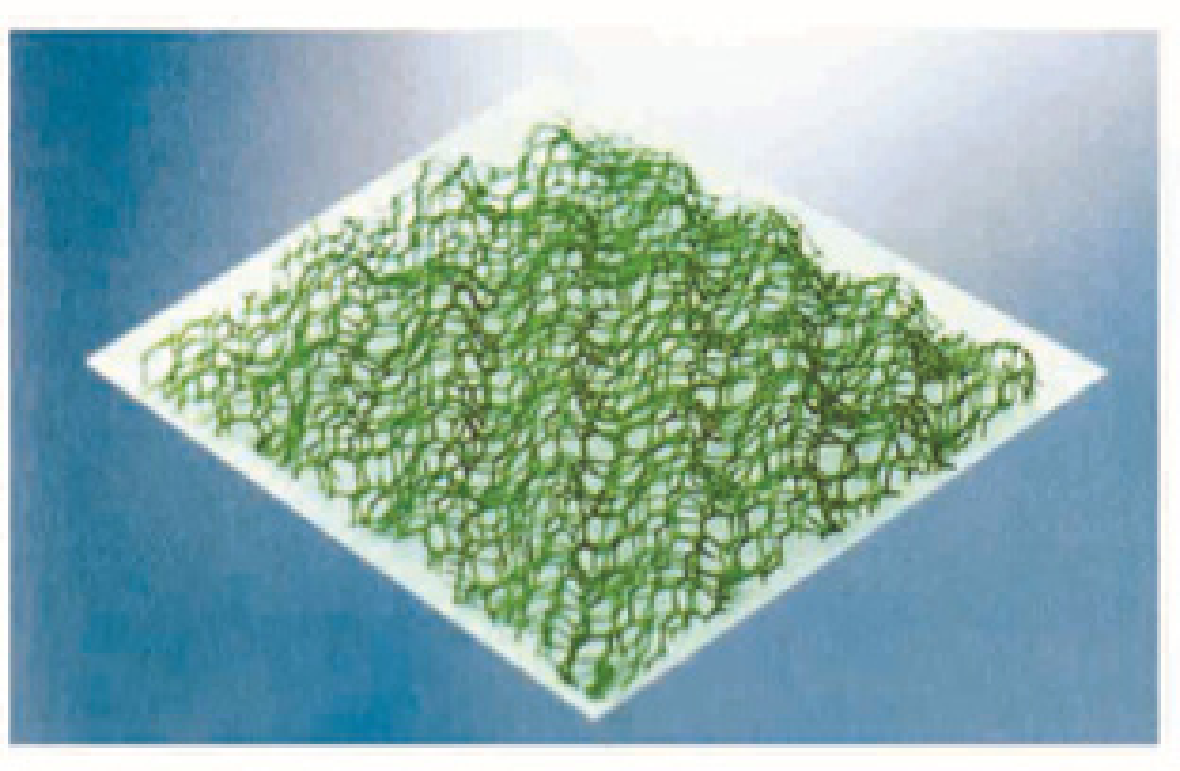

3D Geomat (Three Dimensional Control Mat)property index
Speification |
||||
Weight per sq.m.≥(g/m2)
|
220 | 260 | 350 | 430 |
Thickness≥(mm)
|
10 | 12 | 14 | 16 |
Width≥(m)
|
||||
Length≥(m)
|
||||
Vertical tensile strength ≥(kN/m)
|
0.8 | 1.4 | 2.0 | 3.2 |
Horizontal tensile strength ≥(kN/m)
|
0.8 | 1.4 | 2.0 | 3.2 |
Remark
|
The special spec or size can be manufactured according to the demands of the contract or agreement |
